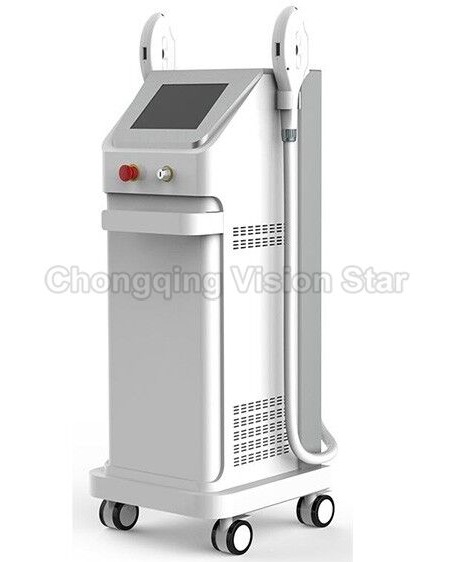

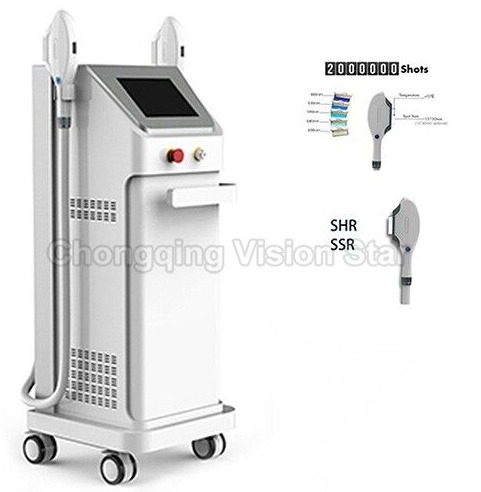

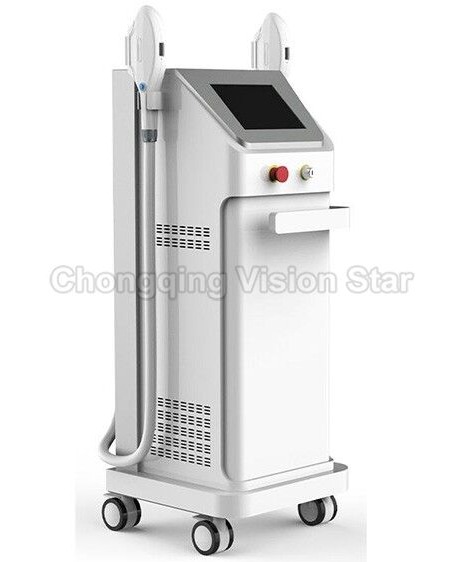

HYB-2AS Vertical IPL SHR 2 in 1 Machine
$0.00
* IPL Wavelength: 480/530/590/640/690 -1200nm
* SHR:640nm
* Spot size: 15*50mm/12*30mm
* Energy: 1-50J/cm²
* Energy:1-26J/cm²
MOQ: 1 Unit
HYB-2AS Vertical IPL SHR 2 in 1 Machine
 |
 |
Principle
IPL is a wide-spectrum light filtered by a filter, and different filters obtain light of different wavelengths. Shorter
wavelengths are used for pigmented and vascular lesions; longer wavelengths are used for hair removal and skin rejuvenation.
Application
1. 480nm~1200nm: Treatment of acne and vascular lesions.
2. 530nm~1200nm: Treatment of vascular (superficial small blood vessels) and pigmented lesions.
3. 590nm~1200nm: Skin rejuvenation,Wrinkle treatment for pigmented and vascular lesions (deep blood vessels).
4. 640nm~1200nm: Hair removal, deep red removal.
5. 690nm~1200nm: Dark skin hair removal.
| IPL/SHR/SSR/E-LIGHT(Common parameter) | |

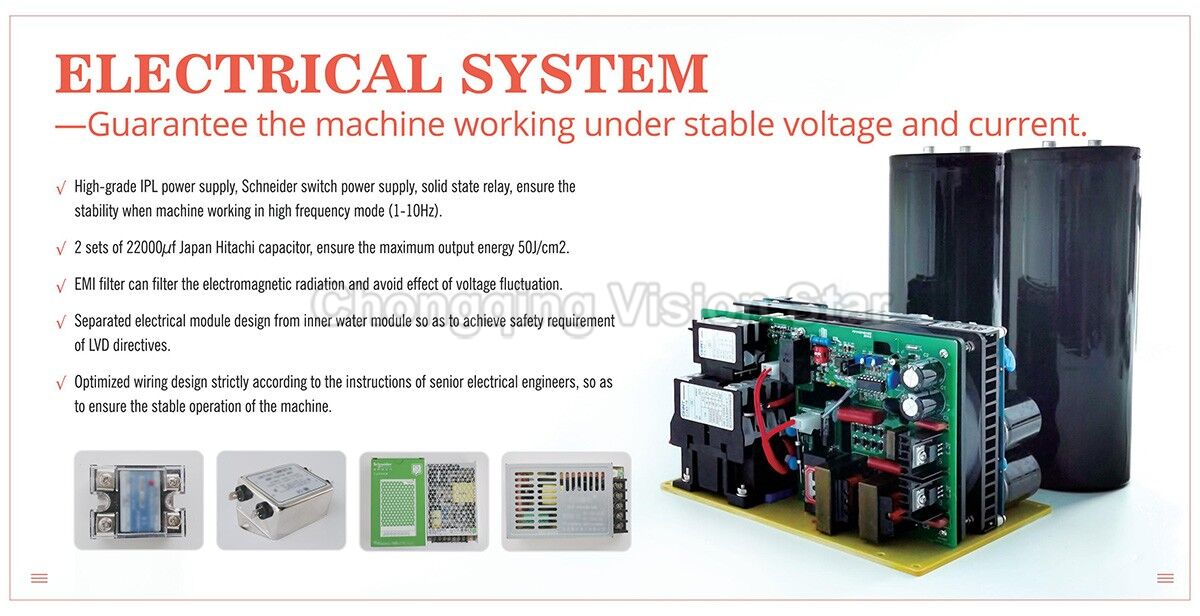

| IPL Power Supply | 1000w/1600w/2000w |
| Spot Size | 15*50mm2 |
| 12*30mm2 (Optional) | |
| RF Frequency/Power | 1MHz/100W |

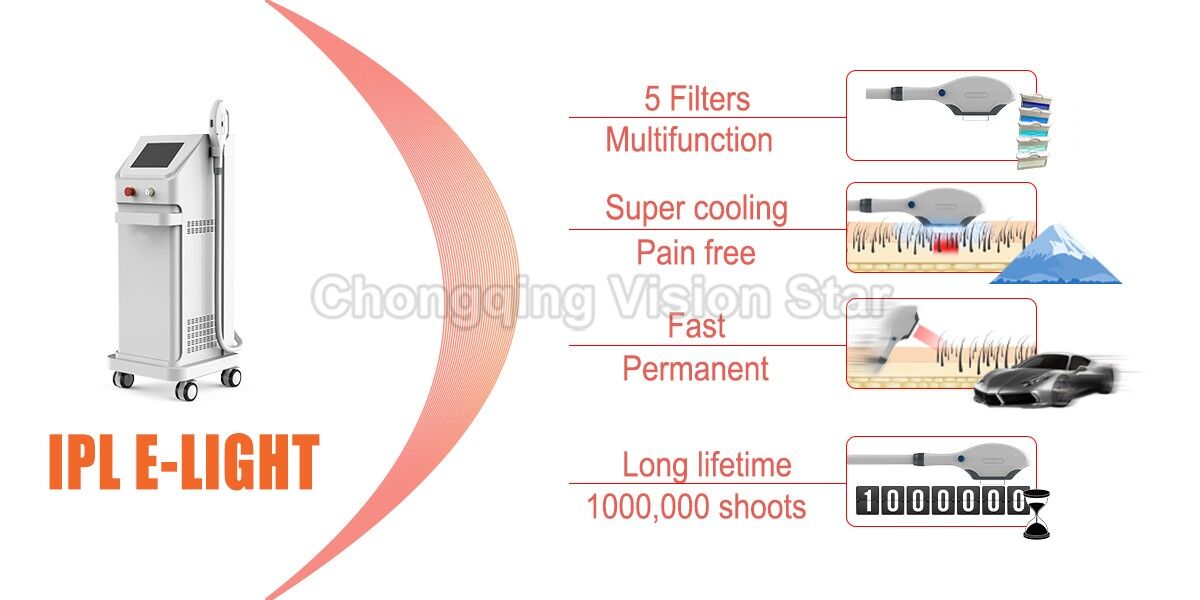

| IPL Shots | 1,000,000 (1 million) |

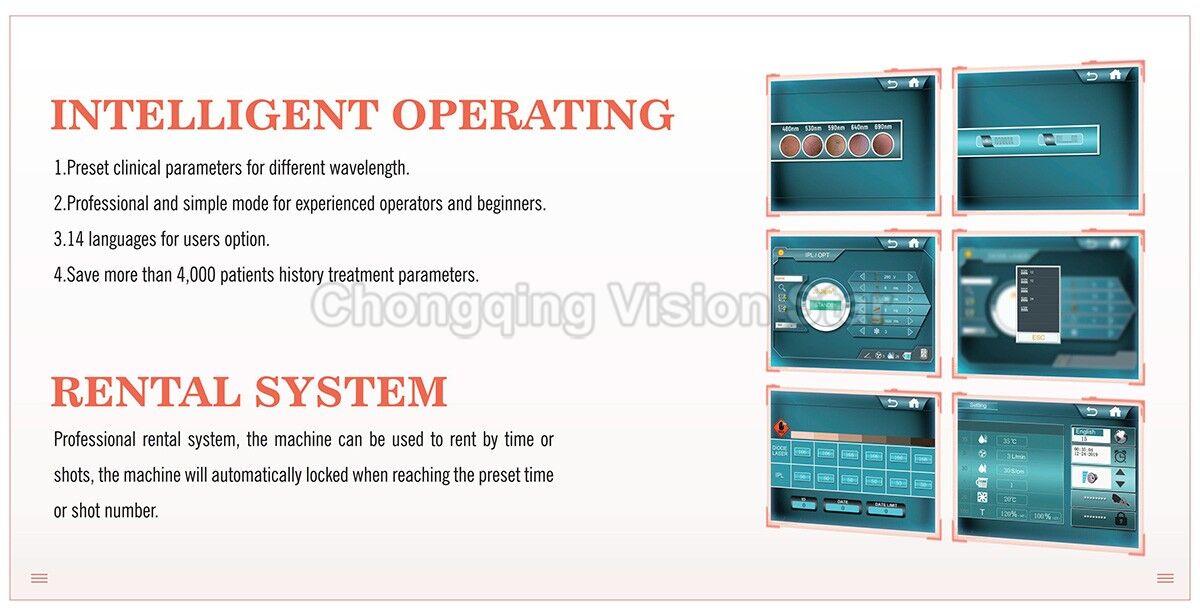

| Display | 10” TFT True Color Touch Screen |
| Machine Cooling | Water circulation cooling + Condensor with air fans |

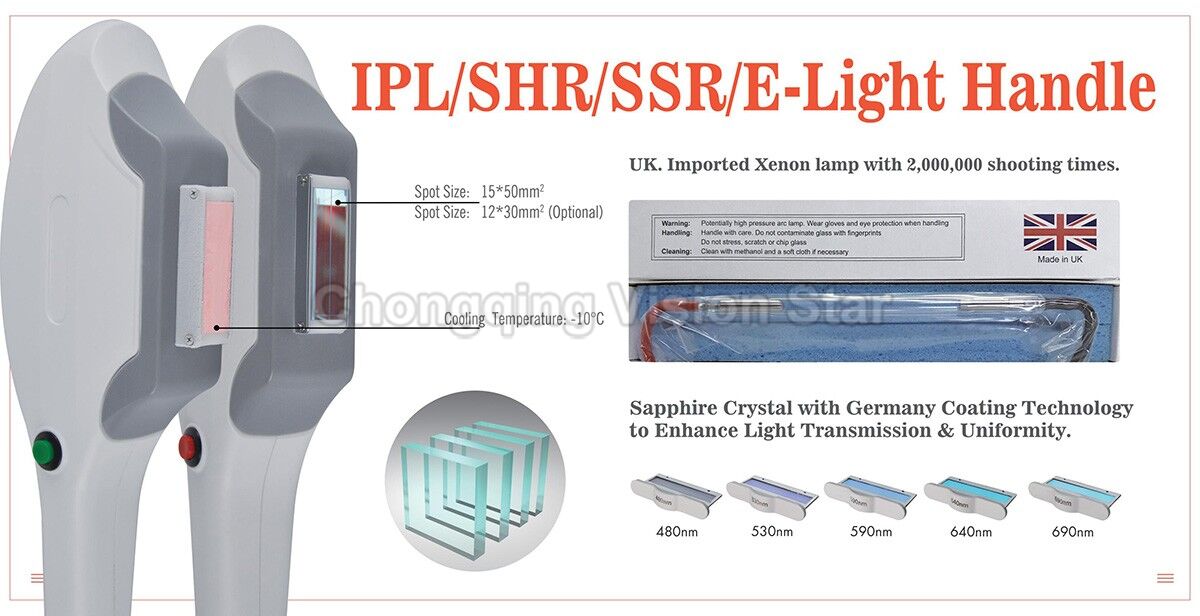

| Handpiece Cooling | TEC + Sapphire contact cooling |
| Stand-by Working | Continuously stand-by working for 18 hours |
| Electrical Requirements | 90-130V, 50/60HZ or 200-260V, 50HZ |
| IPL/Elight mode parameter | |

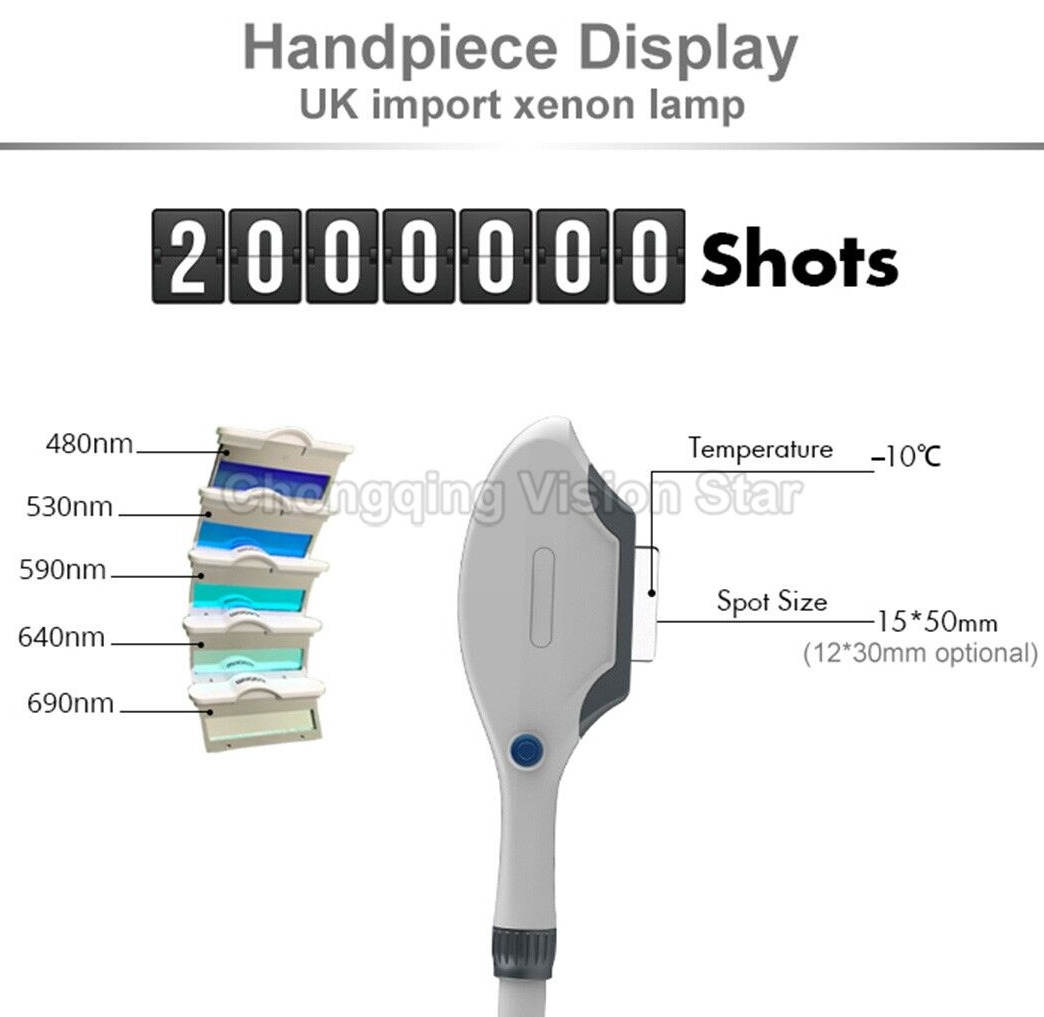

| Wavelength(filter) | 480/530/590/640/690–1200nm (standard) |
| Energy Fluence | 1-50J/cm2 (50J/cm2,only 480nm-1200nm filter) |
| Pulse Number | 1-6pulses |
| Pulse Duration | 1-12ms |
| Pulse Interval | 5-150ms |
| Pulses Delay | 1000-3000ms |
| SHR/SSR mode parameter | |
| Wavelength(filter) | SHR:640-950nm/SSR:570-950nm |
| Pulse Frequency | 1-10Hz (Depending on the single pulse output energy) |
| Pulse Duration | 2-15ms |
| Energy Fluence | 1-26J/cm2 (26J/cm2,Frequency:2Hz,1000W IPL power supply) |
| 1-26J/cm2 (26J/cm2,Frequency:3Hz,1600W IPL power supply) | |
| 1-26J/cm2 (26J/cm2,Frequency:5Hz,2000W IPL power supply) | |
What will you get from us? 1. Quality and stable equipment with long lifespan; 2. OEM service from one unit; 3. Free repair and spare part replacement within 1 year; 4. Free video training; 5. In-time customer service; 6. One-week worldwide delivery; 7. Lifetime after sales support.
Chongqing Vision Star S&T Co., Ltd. is specialized in manufaturing and selling beauty equipment for business, aesthetic clinic and salon, and we are offering professional esthetician devices, including hair removal and skin treatment laser, IPL, DPL, OPT , HIFU, EMS, fat freezing, radio frequency, skin cleaning, skin analysis machine, etc. We have gotten rich experiences, owned complete product range and mature production line in beauty industry, built solid sales network throughout Europe, America, Asia, Africa and other countries. Our products have earned high praise for good quality and price in the international market. You can choose different payment methods, get free Logo customization service, one-to-one sales assistance, and 1-3 years quality assurance from our company. We are devoted to establishing win-win cooperation with you, and providing one-stop solution for your business. Please send inquiry or just contact us if you are interested in HYB-2AS Vertical IPL SHR 2 in 1 Machine or other products.
